In today's competitive global market, a one-size-fits-all approach to industrial packaging is no longer sufficient. For businesses across agriculture, construction, chemicals, and retail, packaging is not just a container—it's a brand ambassador, a logistical solution, and a critical component of product integrity. As a leading woven polypropylene (PP) bag manufacturer with over two decades of expertise, we understand that true value lies in precision customization. This comprehensive guide delves into the expansive world of customization options we offer, transforming standard woven bags into tailored solutions that drive your operational efficiency and brand recognition.

1.(1)Advanced Logo Printing and Branding Techniques.

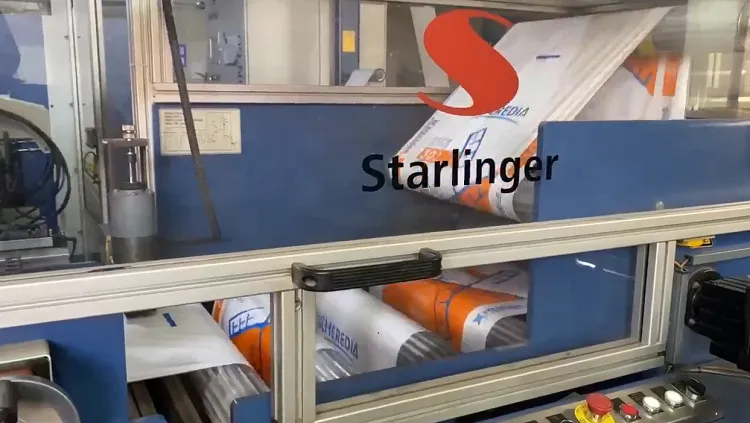

This direct rotary printing method utilizes flexible photopolymer plates mounted on cylinders. It's exceptionally efficient for long runs with repeatable designs. We can achieve vibrant, consistent prints with a standard 4 color process on one or both sides of the bag.Modern advancements allow for halftone printing, enabling more detailed logos and even photographic images with surprising clarity on woven fabric.

Color matching is prioritized using the Pantone Matching System (PMS) to ensure your corporate colors are replicated accurately, batch after batch.

(2)Printing on Laminate

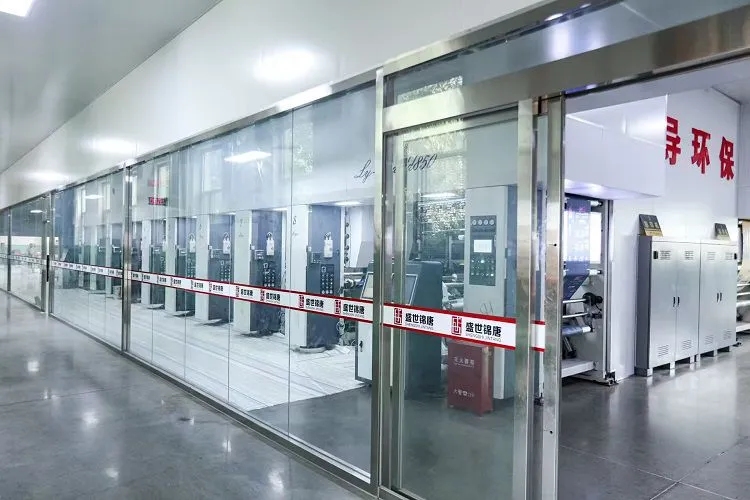

Printing is done on the film before lamination using high-resolution rotogravure or flexographic presses. This allows for stunning, photorealistic graphics, intricate designs, and razor-sharp text. The lamination layer also provides an excellent moisture and vapor barrier, protecting sensitive contents like premium flour, sugar, or chemical compounds.

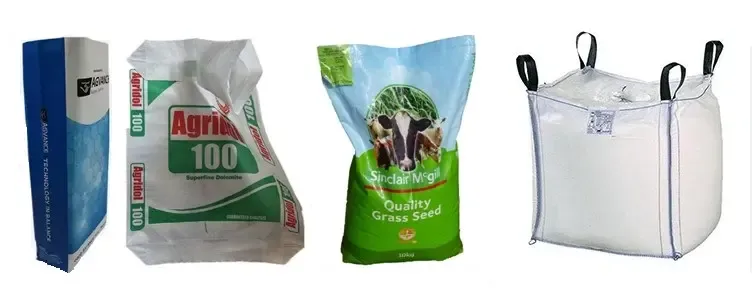

2.Dimensions, Shape, and Structural Design

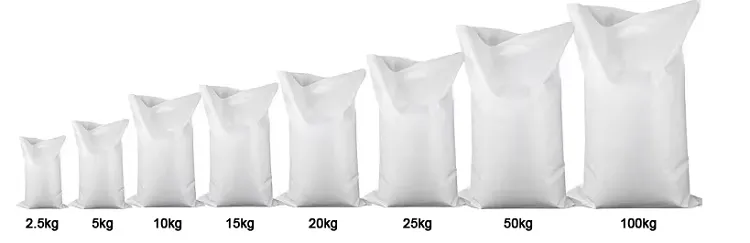

• Standard Open-Mouth Bags: Defined by Width x Length. We manufacture widths from 35cm to 90cm and lengths from 55cm to 130cm. The choice affects filling speed, palletization patterns, and manual handling ergonomics.

• The Power of the Gusset: A gusset is the fold at the sides of a bag. A gusseted bag (e.g., 50cm wide with 10cm side gussets) lays flat when empty but expands to hold a greater volume. It creates a more stable, box-like shape when filled, allowing for tighter, safer pallet stacking. This is non-negotiable for efficient sea container loading and warehouse storage.

• Valve Bags: For automated filling of fine powders like cement, flour, or gypsum. A small internal sleeve (the valve) is stitched into the bag’s corner. After filling, the product's own pressure seals the valve, preventing dust and contamination. Customizing the valve's size and position is key to matching your specific filling equipment.

•


Denier and Mesh Count: We customize the thread thickness (denier, typically 800-2000D) and the weave density (strands per inch/sqcm). A higher denier with a tight weave (e.g., 14x14 strands per inch) creates an incredibly strong, low-porosity bag for heavy, sharp materials like mineral ores. A lighter denier with a more open weave offers a cost-effective, breathable solution for agricultural produce like onions or potatoes.

Laminated vs. Unlaminated: As discussed, lamination adds barrier properties and a print surface. An unlaminated, circular woven bag (seamless tubular fabric) offers maximum flexibility and breathability, ideal for certain produce types.

Customizing woven bags is not a simple checklist; it's a collaborative engineering process. The optimal solution lies at the intersection of your product characteristics (weight, density, form, sensitivity), supply chain demands (filling speed, manual/automated handling, transport mode, storage conditions), and market needs (brand visibility, retail compliance, end-user convenience).

Our process begins with a detailed consultation to understand these variables. We then leverage our technical expertise to recommend and prototype the ideal configuration—be it a gusseted, laminated pouch with a zipper for retail consumers, or a UV-stabilized, cross-bottom valve bag with anti-slip tape for a cement producer.

In a world of generic solutions, a precisely customized woven bag is a strategic asset. It minimizes product loss, maximizes logistical efficiency, protects your brand reputation, and ultimately, enhances your bottom line. Contact our technical team today to begin the journey of crafting your perfect woven bag solution.
